MS209B
EN124 C250 Composite Gully Grate C/O 350x350mm

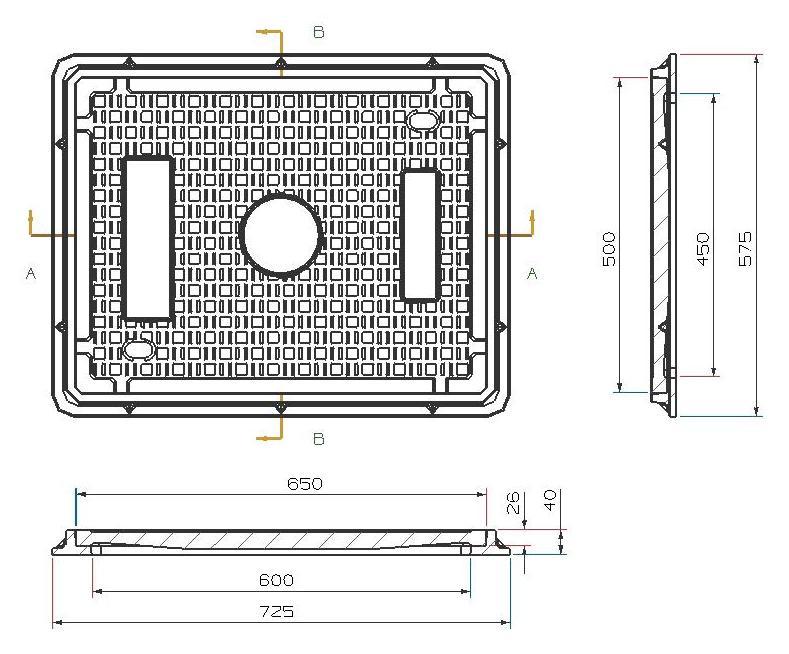

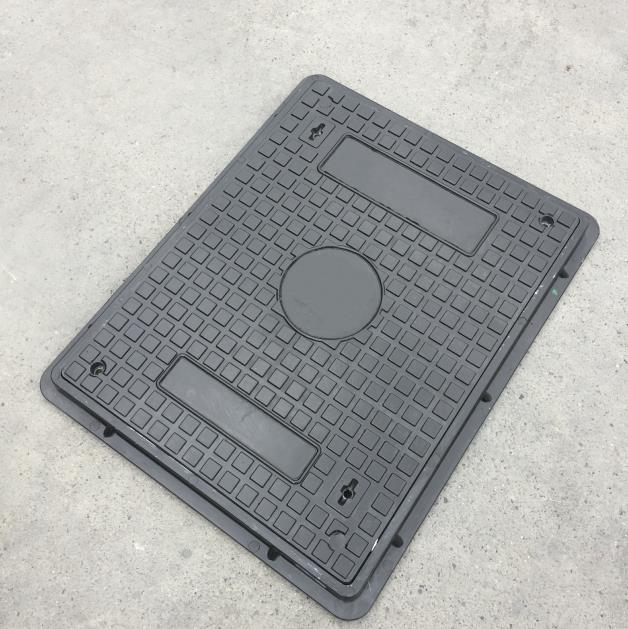

Innovative material improvements and structure performance, JM-MS209B Light Composite Manhole Cover conforms to BS EN124 B125 Class and is suitable for footways, pedestrian areas and comparable parks or car parking decks.
.jpg)

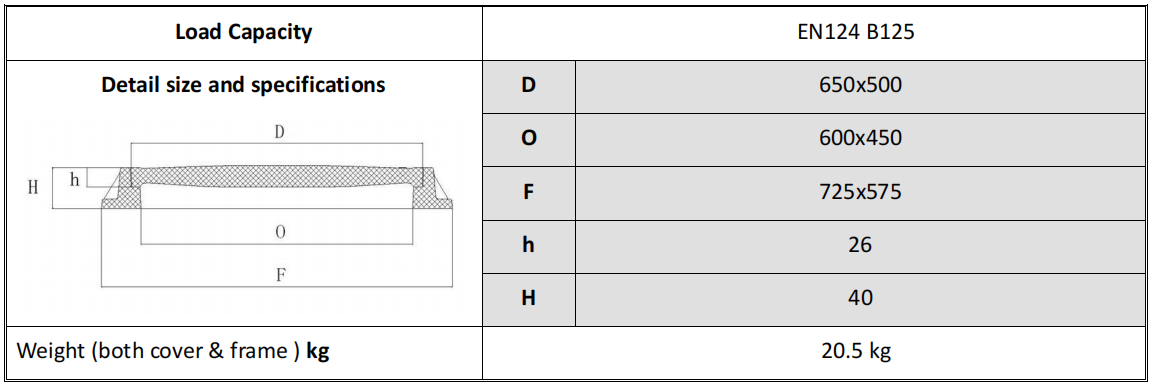

Technical Parameters

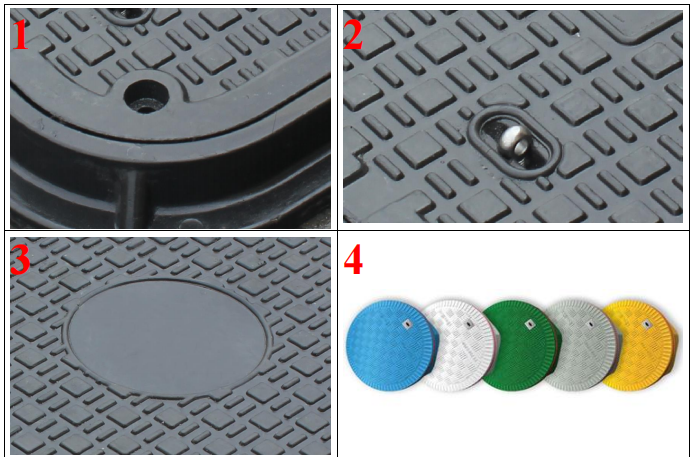

Features Summary
1. Frour S.S screws lock fasten cover with frame, high safety and easy maintenance.
2. The two lifting screws are designed for the easier lifting.
3. Customer logo, incription and cover customized design service is supported.
4. Rubber sealing has 100% watertight function.
5. Various color option is available and Black or Grey are recommended.
EN124 Standard
| Group | Traffic Description Class | Class | Proof Load kN | Proof Load lbs. |
|---|---|---|---|---|
| 1 | Areas which can only be used by pedestrians and pedal cyclist. | A15 | 15 kN | 3,375 lbs. |
| 2 | Footways, pedestrian areas and comparable parks or car parking decks. | B125 | 125 kN | 28,100 lbs. |
| 3 | For gullytops installed in the area of curbside channels of roads. | C250 | 250 kN | 56,200 lbs. |
| 4 | Carriageways of roads (including pedestrian streets), hard shoulders and parking areas, for all types of road vehicles. | D400 | 400 kN | 89,925 lbs. |
| 5 | Areas of imposing high wheel loads, e.g. dock and aircraft pavements. | E600 | 600 kN | 134. 885 lbs. |
Pictures
