MS221C

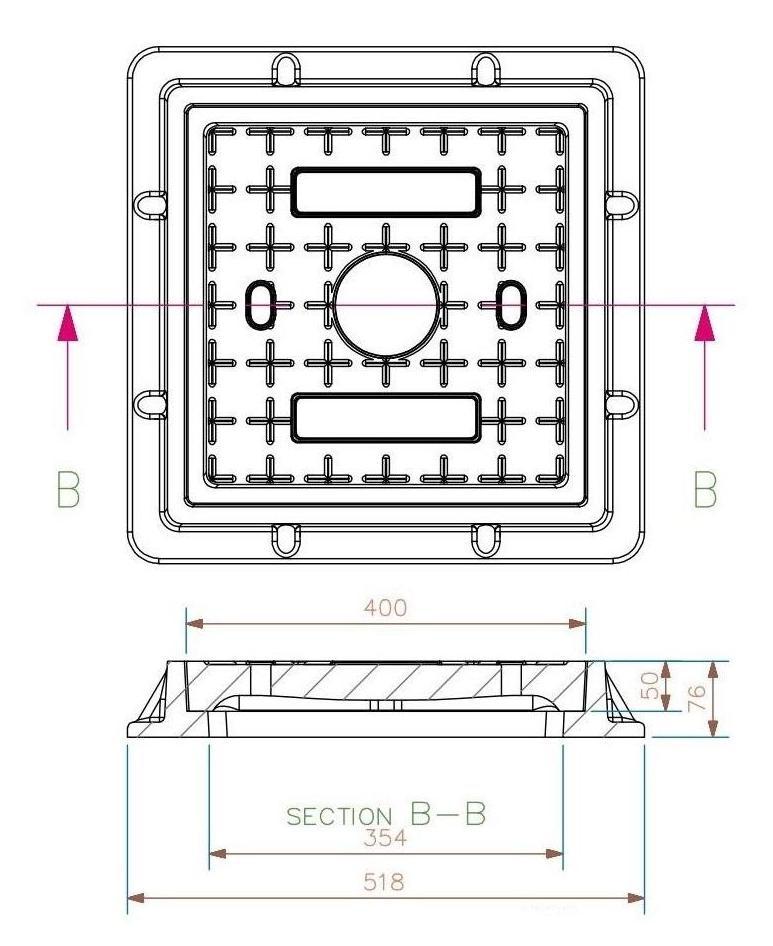

EN124 C250 Composite Gully Grate C/O 350x350mm
Innovative SMC Composite material improvements and structure perfomance, JM-MS221C Light Composite Manhole Cover conforms to BS EN124 C250 Class and is suitable for gullytops installed in the area of curbside channels of roads.

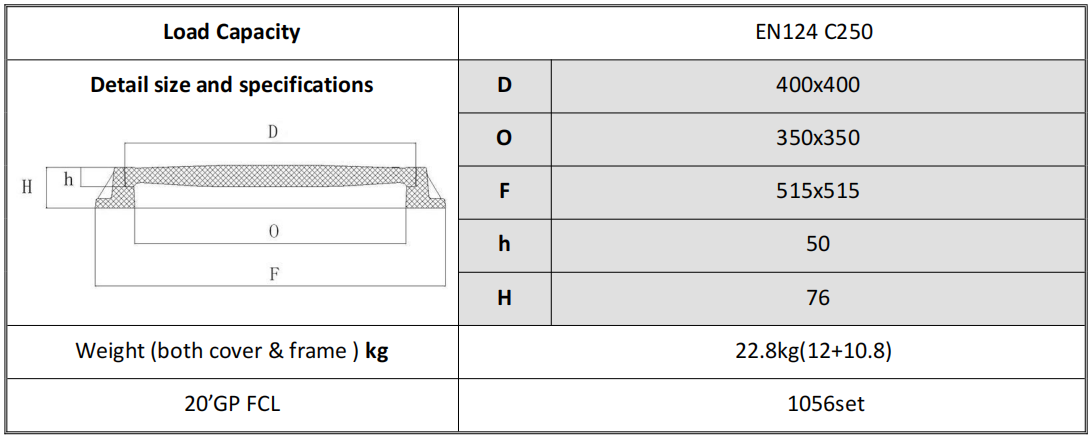

Technical Parameters

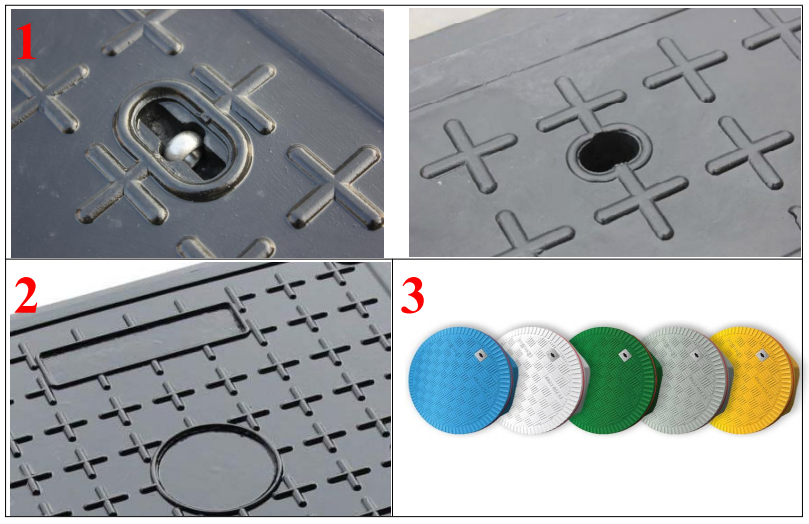

Features Summary
1. The two lifting screws are designed for the easier lifting.
2. Customer logo, incription and cover customized design service is supported.
3. Various color option is available and Black or Grey are recommended.
4. Skid resistance.
EN124 Standard
| Group | Traffic Description Class | Class | Proof Load kN | Proof Load lbs. |
|---|---|---|---|---|
| 1 | Areas which can only be used by pedestrians and pedal cyclist. | A15 | 15 kN | 3,375 lbs. |
| 2 | Footways, pedestrian areas and comparable parks or car parking decks. | B125 | 125 kN | 28,100 lbs. |
| 3 | For gullytops installed in the area of curbside channels of roads | C250 | 250 kN | 56,200 lbs. |
| 4 | Carriageways of roads (including pedestrian streets), hard shoulders and parking areas, for all types of road vehicles. | D400 | 400 kN | 89,925 lbs. |
| 5 | Areas of imposing high wheel loads, e.g. dock and aircraft pavements. | E600 | 600 kN | 134. 885 lbs. |
