WG401D-H

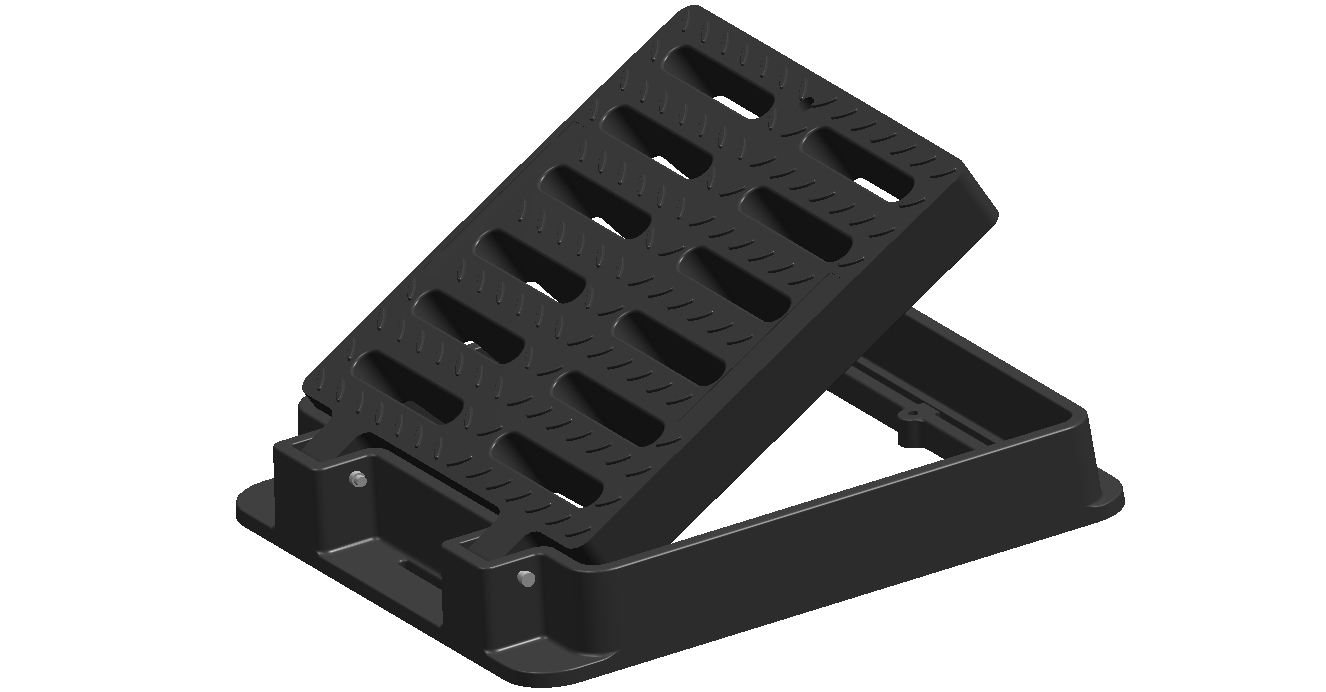

EN124 D400 Composite Gully Grate 450x450mm with hinge &S.S Screw Lock.
Innovative SMC Composite material improvements and structure perfomance, JM-WG401D-H high loading Composite Gully Grate conforms to BS EN124 D400 Class and is suitable for carriageways of roads (including pedestrian streets), hard shoulder and parking areas, for all types of road vehicles.

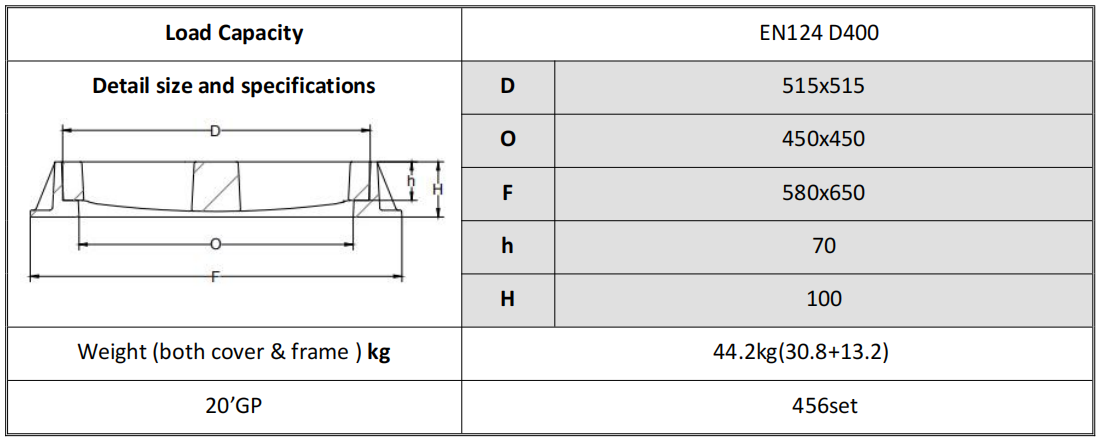

Technical Parameters

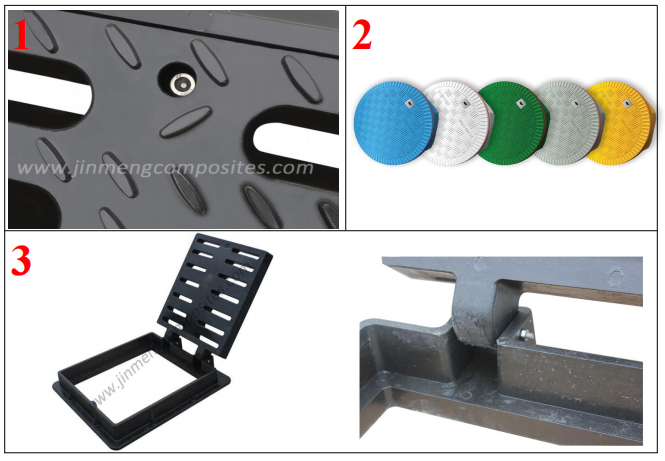

Features Summary
1. One S.S Screw Lock has better performance in against theft.
2. Various color option is available and Black or Grey are recommended.
3. 120 flip design makes the operation easier without injury.
4. Skid resistance.
EN124 Standard
| Group | Traffic Description Class | Class | Proof Load kN | Proof Load lbs. |
|---|---|---|---|---|
| 1 | Areas which can only be used by pedestrians and pedal cyclist. | A15 | 15 kN | 3,375 lbs. |
| 2 | Footways, pedestrian areas and comparable parks or car parking decks. | B125 | 125 kN | 28,100 lbs. |
| 3 | For gullytops installed in the area of curbside channels of roads | C250 | 250 kN | 56,200 lbs. |
| 4 | Carriageways of roads (including pedestrian streets), hard shoulders and parking areas, for all types of road vehicles. | D400 | 400 kN | 89,925 lbs. |
| 5 | Areas of imposing high wheel loads, e.g. dock and aircraft pavements. | E600 | 600 kN | 134. 885 lbs. |
