WG415C
EN124 C250 Composite Gully Grate C/O 350x450mm
Innovative material improvements and structure performance, JM-WG415C Composite Gully Grating conforms to BS EN124 C250 Class and is suitable for the drainage system on both sides of road, ensuring the traffic safety.

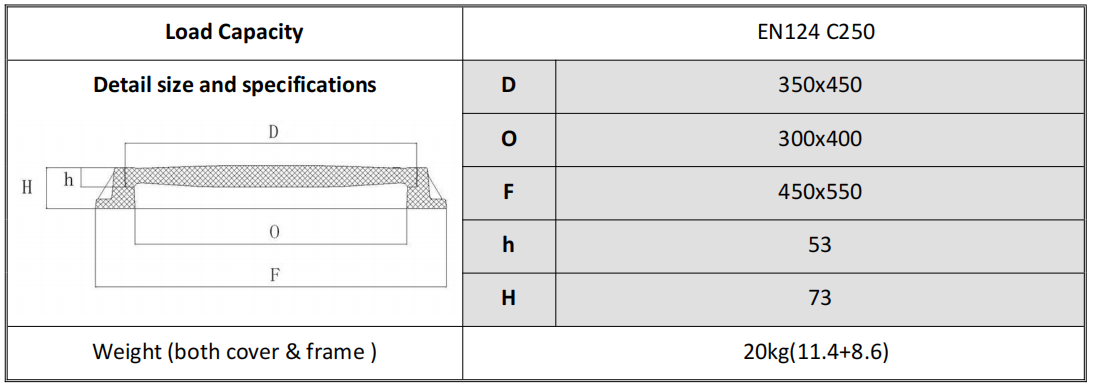

Technical Parameters
EN124 Standard
| Group | Traffic Description Class | Class | Proof Load kN | Proof Load lbs. |
|---|---|---|---|---|
| 1 | Areas which can only be used by pedestrians and pedal cyclist. | A15 | 15 kN | 3,375 lbs. |
| 2 | Footways, pedestrian areas and comparable parks or car parking decks. | B125 | 125 kN | 28,100 lbs. |
| 3 | For gullytops installed in the area of curbside channels of roads. | C250 | 250 kN | 56,200 lbs. |
| 4 | Carriageways of roads (including pedestrian streets), hard shoulders and parking areas, for all types of road vehicles. | D400 | 400 kN | 89,925 lbs. |
| 5 | Areas of imposing high wheel loads, e.g. dock and aircraft pavements. | E600 | 600 kN | 134. 885 lbs. |

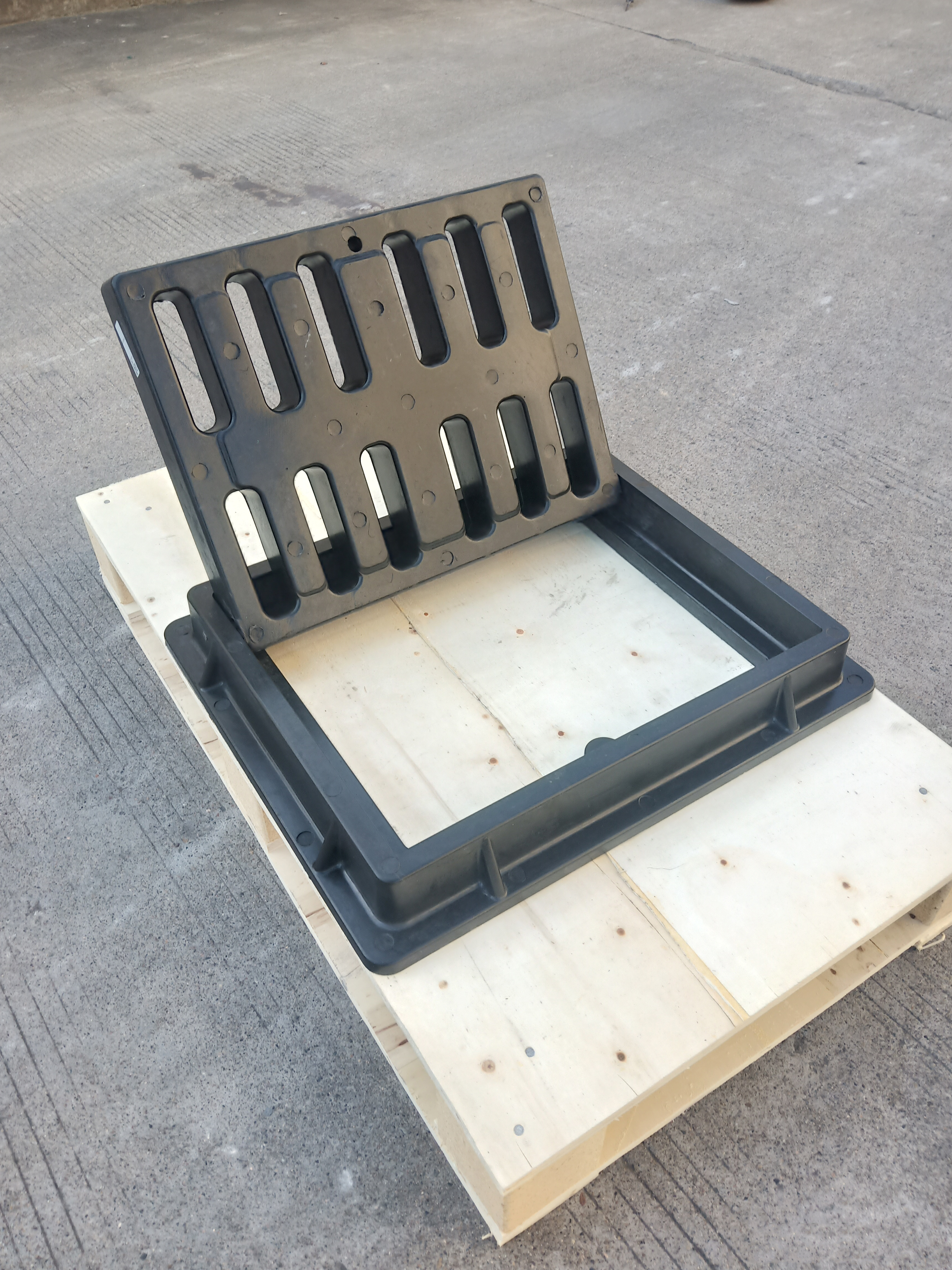

Pictures
