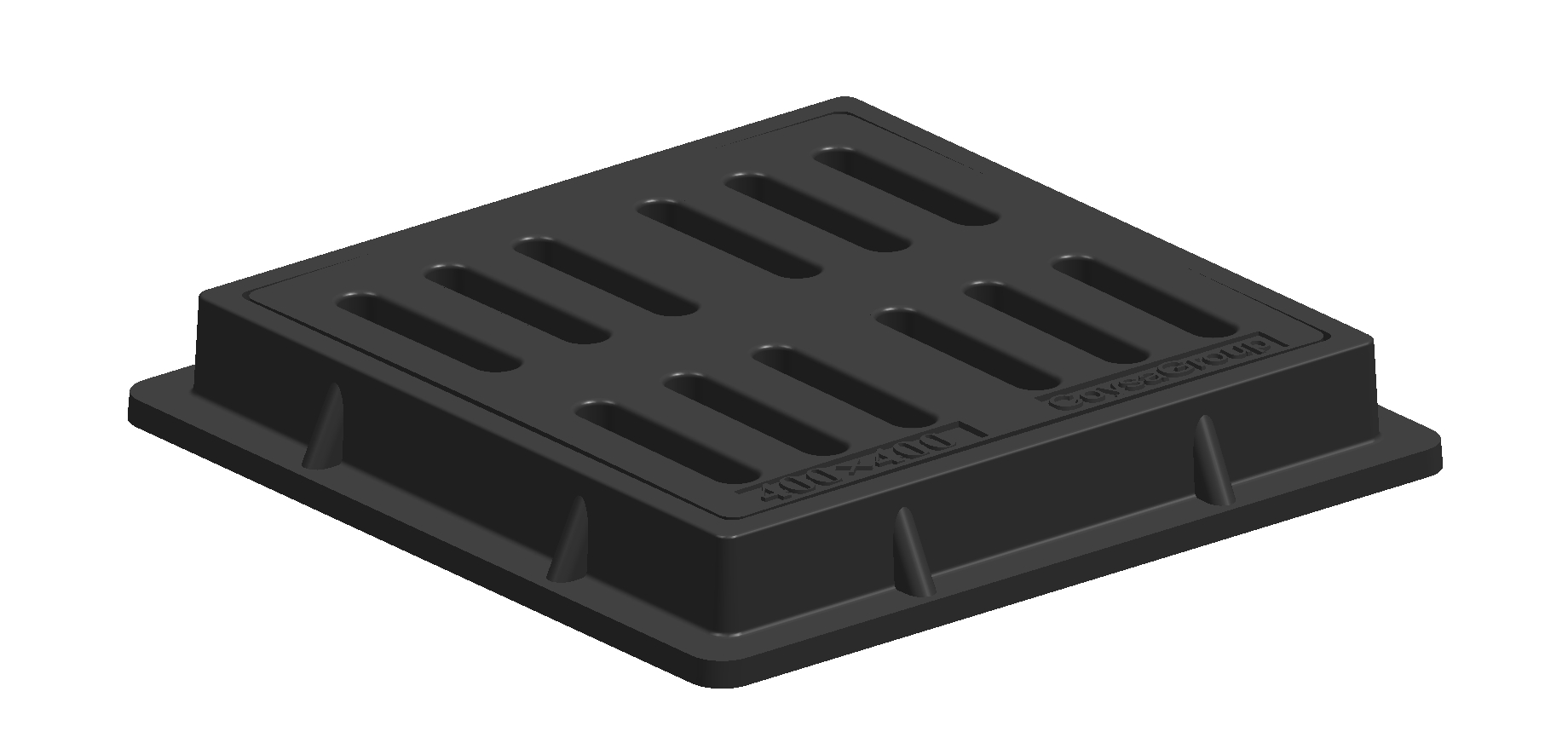

WG416C
EN124 C250 Composite Gully Grating C/O 400x510mm Cover dia 450x580mm
Innovative SMC Composite material improvements and structure perfomance, JM-WG416C high loading Composite Gully Grate conforms to BS EN124 C250 Class and is suitable for the drainage system on both sides of road, ensuring the traffic safety, pedestrian areas and comparable parks or car parking decks.

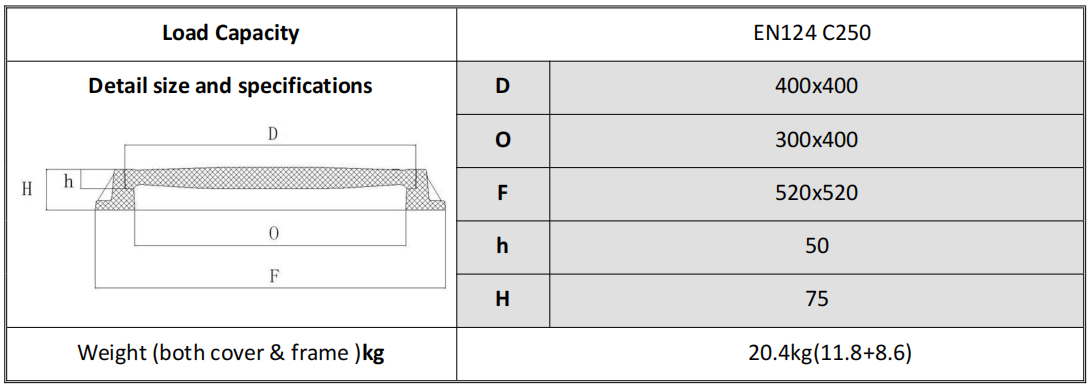

Technical Parameters
EN124 Standard
| Group | Traffic Description Class | Class | Proof Load kN | Proof Load lbs. |
|---|---|---|---|---|
| 1 | Areas which can only be used by pedestrians and pedal cyclists. | A15 | 15 kN | 3,375 lbs. |
| 2 | Footways, pedestrian areas and comparable parks or car parking decks. | B125 | 125 kN | 28,100 lbs. |
| 3 | For gullytops installed in the area of curbside channels of roads | C250 | 250 kN | 56,200 lbs. |
| 4 | Carriageways of roads (including pedestrian streets), hard shoulders and parking areas, for all types of road vehicles. | D400 | 400 kN | 89,925 lbs. |
| 5 | Areas of imposing high wheel loads, e.g. dock and aircraft pavements. | E600 | 600 kN | 134. 885 lbs. |
